Introduction

After installing and configuring your virtual appliance SWS or SaaS instance, now you can use their method to sign or apply timestamp. SWS have two interfaces SOAP and REST. SOAP and REST standard interface is used for files under 80MB and REST big interface is used for files over 80MB.

SWS can manage some signature devices like:

• automatic signature (her name starts with AHI or AHIP followed by numbers)
• eSeal (her name starts with SHI or SHIP followed by numbers)
• remote signature (her name starts RHI or RHIP followed by numbers)
• disposable signature (her name starts with RHI or RHID followed by numbers)
• long-lived signature (her name starts with RHIL or RHILD followed by numbers)

During the integration, you can only see:

• eSeal like an automatic signature
• disposable, long-lived like a remote signature

The remote signature is like an extension of the automatic signature because it requires the OTP code beyond username and password.

SWS supports three different types of signatures:

• Pades: valid only for PDF files
• Xades: valid only for XML files
• Cades: valid for every type of file

Apply timestamp on files (according to standard RFC3161)

Each type of signature and timestamp has its web method, which is described in the next sections.

In this user guide, the examples will be shown using "SoapUI". This is a free tool which can be installed on every OS. It is possible to create SOAP requests with this tool that invokes different web methods.

During the integration, the application client of SWS should recreate the same XML soap request created on SoapUI with his program language.

Methods for sign

SWS offer different method according to type of device signature. For example with automatic signature isn't possible to use the method "sendOtpBySMS" because don't require the second factor for sign.

Below will be described all methods offered by SWS.

Sign interface#MethodgetAvailableSignatures

Methods for automatic and remote signature

The main methods used to sign (valid for remote and automatic signatures) are:

• signPAdES → Used for sign only PDF files
• signPAdESMultiFieldName → Used for sign only PDF files, the field signature must exist
• signCAdES → Used for sign every type of files
• signXAdES → Used for sign XML files
• signPkcs1 → Used for raw signature (require the client of SWS make the cryptographic envelope)
• getSignatures → allows obtaining the number of signatures, since the certificate was issued
• getCertificate → allows obtaining the certificate associated to signature device
• getAvailableSignatures → allows obtaining the numbers of signatures (valid only for device NOT pay per use, otherwise an exception is generated)
• changePassword → allows changing the password (PIN) of the device

Each method requires the Credentials object. In the next section, you will see how to populate this field.

Method signPades

In this table are defined the parameters required (IN) and the output (OUT) of this method:

Method signPadesMultiFieldName

In this table are defined the parameters required (IN) and the output (OUT) of this method:

AVAILABLE FROM VERSION 2.5.57

PadesWithMultiFieldName

Here you can find a description of the complex object PadesMultiFieldName.

ServiceError

Here you can find a description of the complex object ServiceError.

NOTE: For example if you want sign a PDF with 10 fields signatures ("field-1", "field-2", ... "field-10") using the sessionKey after 6 signatures the session key has expired in output will receive this response.

ResponseMultiFieldName

signedContent = PDF with 6 signatures (the fields signed are: "field-1", "field-2",...,"field-6")

remainingFieldNames = ["field-7","field-8","field-9","field-10"]

IMPORTANT!!!

The serviceError will be:

serviceError.code = 69

serviceError.message = "SessionKeyScaduta"

Example of usage

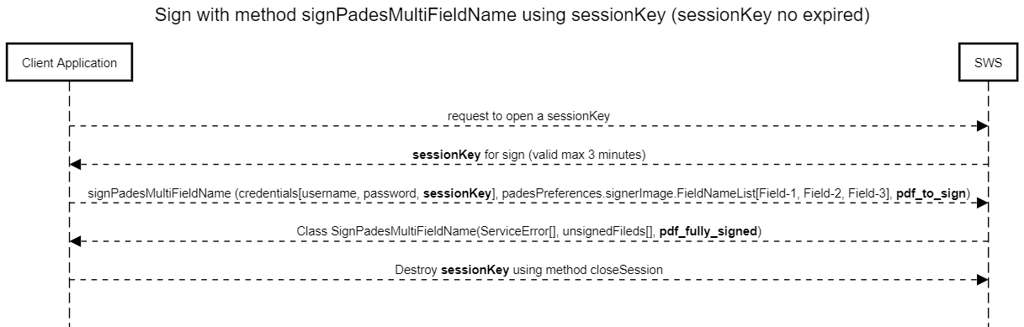

In this sequence diagram, you can see usage standard (when the session key no expire):

In this use case we are signing the signatures fields ("Field-1", "Field-2" and "Field-3") of "pdf_to_sign" and SWS make all three signatures required without problem returning the "pdf_fully_signed".

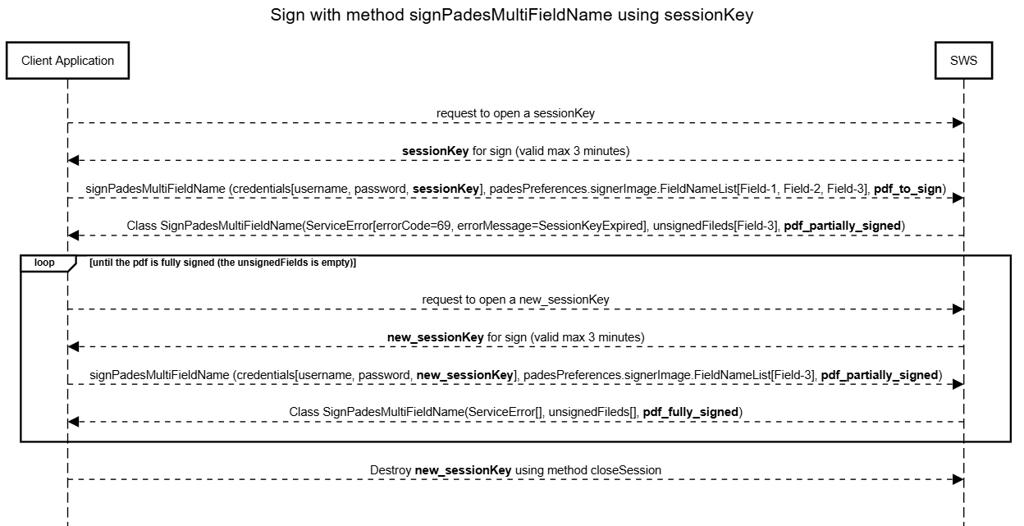

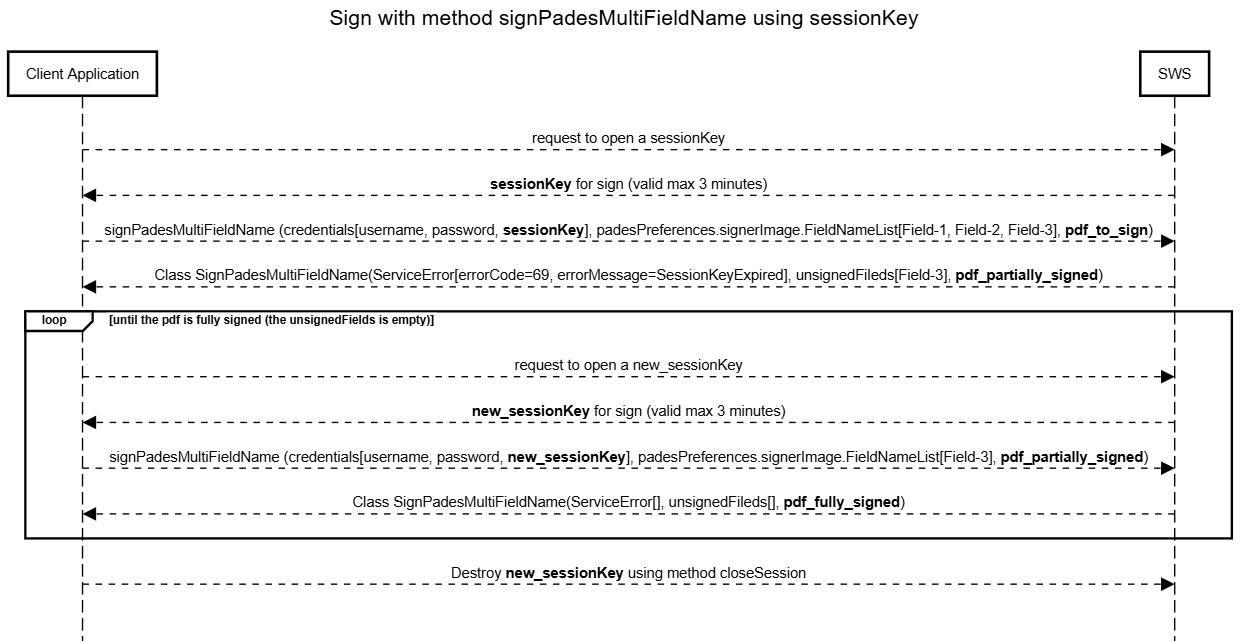

Below you can find a sequence diagram that explains the method "signPadesMultiFieldName" when the session key expire.

In this use case our target is: sign 3 fields ("Field-1", "Field-2" and "Field-3") of "pdf_to_sign" using a session key.

Make the request using "signPadesMultiFieldName" and after two signature the session key has expire.

Therefore the response will be:

• the pdf_partially_signed (contains two signatures)
• ServiceError contain the details about error (in this example session key expired)
• List of unsigned fields: Field-3

To complete all three signatures we must:

• generate "new_sessionKey"
• make a new request of signPadesMultiFieldName using pdf_partially_signed and set "Field-3" as list fields to sign

Finally, in response we obtain the pdf_fully_signed!

Method signCades

In this table are defined the parameters required (IN) and the output (OUT) of this method:

Method signXades

In this table are defined the parameters required (IN) and the output (OUT) of this method:

Method signPkcs1

In this table are defined the parameters required (IN) and the output (OUT) of this method:

NOTE:

SignPreferences is a complex object, the method require only the field: SignPreferences.hashAlgorithm

Possible values:

• SHA-256 (default value if not specified)
• SHA-1
• SHA-384
• SHA-512

Method changePassword

In this table are defined the parameters required (IN) and the output (OUT) of this method:

VERY IMPORTANT: If the customer forgets the new password, it IS NOT POSSIBLE to recover/reset the password.

Methods only for remote signature

If you are signing with a remote signature, you can also use these methods:

• getOTPList → allows obtaining the list of OTPs associated with your remote signature (OTP is assigned to the owner of the certificate. For example, if you have two or more remote signatures associated with the same owner, you can use this OTP for each remote signature).
• sendOtpBySMS → it will send an SMS containing the OTP code
• openSession → allows obtaining the token (like a string) for the signature instead of inserting new OTP code for each signature. The token is available for three minutes from generation.
• getRemainingTimeForSession → returns time until the session is valid
• closeSession → if you want to destroy the token before three minutes (however will expire after three minutes)

Method getOtpList

Method sendOtpBySMS

After this method is done the customer receives an SMS with an OTP code to use.

Method openSession

At the end of this method the customer will receive string with sessionKey for sign (credentials.sessionKey)

Method getRemainingTimeForSession

Method closeSession

After this method is done the session is destroyed.

Methods for timestamp

SWS offers methods for applying timestamp and enquiry (only for Namirial accounts).

• timestamp → allows to get the file with timestamp; there are two types TSR or TSD. The TSR option means that the timestamp is in another file, while TSD means that the timestamp signature is in the same file.
• getAvailableTimestamps → allows getting the timestamp; available ONLY for Namirial account.

Each method is described below with the required inputs.

Method timestamp

This method can be used with all timestamp account (not only Namirial) they must use standard RFC3161.

NOTE: Since SWS v2.5.44 this method supports Adobe Timestamp. In the timestampPreferences you should set "outputAsPDF=true".

TimeStampPreferences

Below will described how populate the preferences about timestamp

TimestampUrl can be set to:

Method getAvailableTimestamps (since SWS v2.5.44)

NOTE: TimestampUrl can be set to:

How Sign the file

To sign the file with SWS each method requires parameters:

• Credentials: contain the value about signature device;
• Preferences: contain the details of the signature such as page, appearance etc., Level of signature (B, T, LT, etc.). There are different types of preferences PadesPreferences, CadesPreferences, XadesPreferences;
• buffer: file you want to sign.

In the next sections you will learn how to set these parameters.

Credentials Object

All methods for signing (signPAdES..., signCAdES..., signXAdES) use the Credentials object, as you can see in this table:

How to fill in these fields?

For automatic and remote signature

For each type of signature (automatic signature and remote signature) you must fill in these two fields:

• username: contains the device name starting with RHI..., AHI... or SHI...
• password: contains the PIN associated to the device (read from the blind envelope or set by the customer)

Only for automatic signature

Only if you use the automatic signature (username starts with AHI... or SHI...) you should fill in these fields:

• securityCode: this parameter must not be set. It is used only in certain situations (for example during the change password)

Only for remote signature

Only if you use the remote signature (username starts with RHI...) you should fill in these fields:

• idOtp: (optional) specify the idOtp you want to use for the signature. If you do not want to set the idOtp, you can set idOtp to "-1" and SWS will automatically use the default OTP, threfore will be used: the FIRST element of list generated by the method "getOtpList". Else, using the method "getOTPList", you can retrieve all idOtp belong to specific username;
• Otp: contains the OTP code received via SMS or read in the Namirial app;
• sessionKey: contains the token (like a string) received from openSession method;

How works method getOTPList?

With this method, you can get the OTP list which can be used with the specified username, and you can fill in the Credentials.idOtp variable.

This method requires only the username.

The "OTP" object is compose by:

NOTE: with SWS is not possible to use the OTP with type "OTP PUSH".

Sign with OTP SMS

If you decide to sign with OTP SMS, you should use the method sendOTPBySMS.

sendOTPBySMS

Sign with OTP GENERATOR (App)

If you decide to sign with OTP GENERATOR, you should open the Namirial OTP App and insert the OTP code shown during the signing process.

→Show the guide "How to configure Namirial OTP App" (To Do/Add)

Sign with sessionKey

With otp it is possible to create only one signature, but if you need to sign more files, it is possible with “sessionKey”. The next section describes how the session works.

This function is available only for remote signatures. It allows signing for a maximum of 3 minutes with the same sessionKey. You can see the session like a token provided from the method “openSession”.

Sign with sessionKey

With otp it is possible to create only one signature, but if you need to sign more files, it is possible with “sessionKey”. The next section describes how the session works.

This function is available only for remote signatures. It allows signing for a maximum of 3 minutes with the same sessionKey. You can see the session like a token provided from the method “openSession”.

How obtain the sessionKey?

The “openSession” method allows obtaining the sessionKey.

Input requires:

• username
• password
• otp
• idOtp

openSession

The sessionKey is valid for three minutes from has been generated. With this is possible to sign unlimited files.

How to check if the sessionKey has expired or is valid

You can find out when the session expires with the method getRemainingTimeForSession.

This method requires input:

• username
• sessionKey (obtained from method "openSession")

getRemainingTimeForSession

Destroy the session manually

The method closeSession requires in input:

• sessionKey
• username

closeSession

NOTE: for security reasons, this method doesn't generate an exception if you insert the wrong sessionKey and/or username.

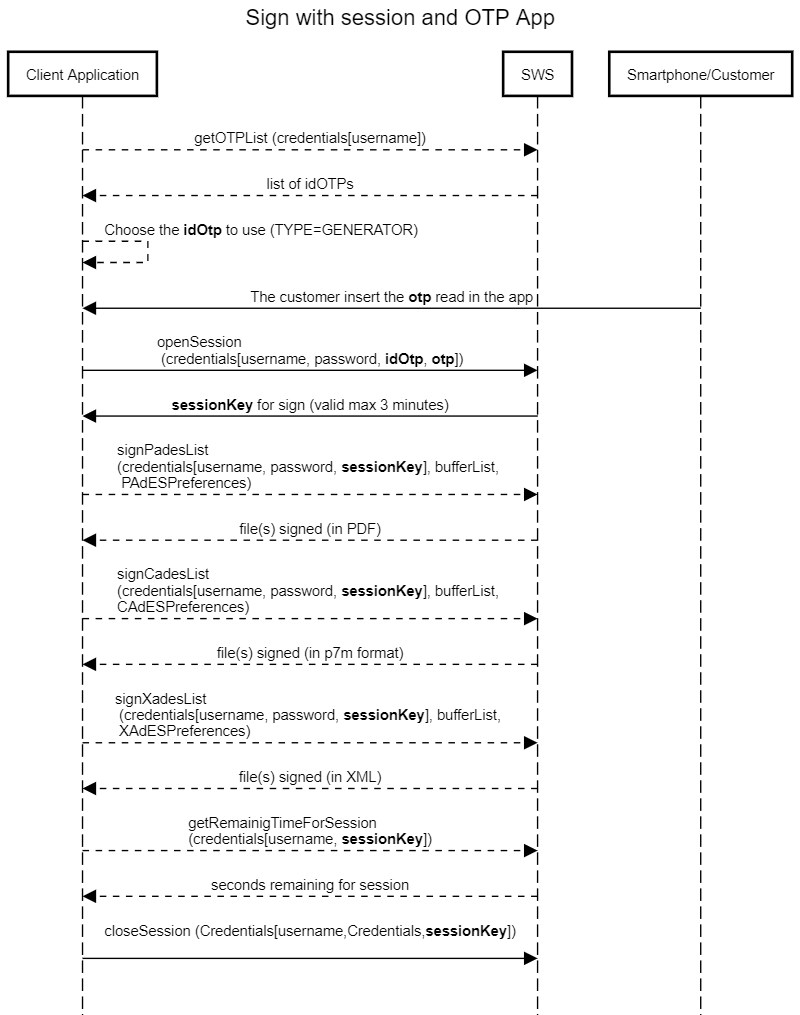

Sequence diagram for signature with session with OTP App

In this sequence diagram, we can summarise the methods that are for the signature with sessionKey and OTP SMS:

Sequence diagram for signature with session and OTP SMS

In this sequence diagram, we can summarise the methods that are called for the signature with sessionKey and OTP SMS:

Summarize

Finally, we have all the requirements to populate the Credentials object during the signing.

As already mentioned, the methods for signing are:

• signPAdES
• signCAdES
• signXAdES

There are the same methods with the suffix "List", they accept in input a list of files to be signed.

Therefore with only SOAP requests is possible to sign more files (using automatic signature or sessionKey).

With these three methods it is possible to sign with any type of signature (automatic and remote).

Each of these three methods uses the Credentials object filled in at the same time.

For the automatic signature, it requires only the username and password variables in the object Credentials.

If you use a remote signature, you should also fill in the other fields:

• idOtp
• OTP or sessionKey

Therefore for the automatic signature, the credentials object is composed by:

• username
• password

While for the remote signature, the credentials object is composed by:

• username
• password
• otp
• idOtp
• sessionKey

If you need to sign multiple files with remote signature you should use the sessionKey as described earlier. Now, that we know how to fill the Credentials object for the methods: signPades, signCades and signXades, we can fill the object buffer.

Now we should populate the value of:

• buffer
• preferences of signature (there are different types for each type of signature)

Populate the "buffer"

The buffer contains the file (in byte array) you want to sign.

In SoapUI, for example, the buffer is composed of the base64 of the file you want to sign, as in this example:

REQUEST-remote-signPades

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://service.ws.nam/">
   <soapenv:Header/>
   <soapenv:Body>
      <ser:signPAdES>
         <credentials>
            <idOtp>501719</idOtp>
            <otp>548316</otp>
            <password>13572468</password>
            <username>RHIP20102336019765</username>
         </credentials>
         <buffer>BASE64-FILE-TO-SIGN</buffer>
         <PAdESPreferences>
            <level>B</level>
            <signerImage></signerImage>
         </PAdESPreferences>
      </ser:signPAdES>
   </soapenv:Body>
</soapenv:Envelope>

You can download the complete example at this link: signPadesList.xml

The output is the base64 associated with the file you just signed as follows: RESPONSE-base64-signPadesList.b64 and decoded will be this PDF: RESPONSE-signPadesList.pdf

Signature Preferences

The difference between signPades, signCades and signXades is based on the preferences:

• signPades → use PadESPreferences
• signCades → use CadESPreferences
• signXades → use XadESPreferences

How to populate these preferences is described in the next sections.

PadES Preferences

This type of preference is used in method signPades. Their main options are:

SignerImage

The SignerImage object is composed of the following:

NOTE: if you are using the method "signPadesMultiFieldName", the property "signAllFields" have a priority on property "fieldsNameList"

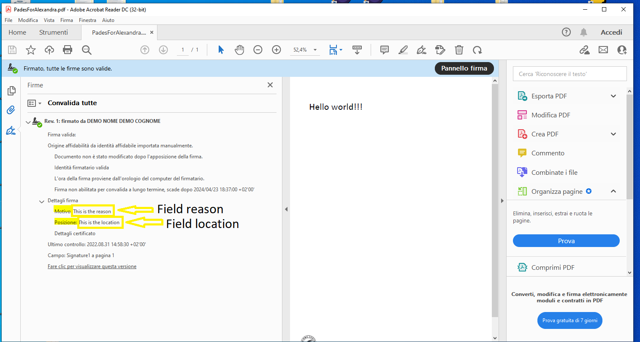

Below an example of output in Adobe if you use the option "location" and "reason":

Use specific ttf (TrueTypeFont)

With SWS is possible to use a specific font specifying a path of ttf files. The fonts available are:

• DejaVu
• helvetica-neue

To use Dejavu, you must set value of "fontName" (signerImage.fontName) with this value:

/usr/share/fonts/dejavu/@FONTNAME@

The possible values of "@FONTNAME@" are:

• DejaVuSans-BoldOblique.ttf
• DejaVuSansCondensed-Oblique.ttf
• DejaVuSansMono-Bold.ttf
• DejaVuSans.ttf
• DejaVuSans-Bold.ttf
• DejaVuSansCondensed.ttf
• DejaVuSansMono-Oblique.ttf
• DejaVuSansCondensed-BoldOblique.ttf
• DejaVuSans-ExtraLight.ttf
• DejaVuSansMono.ttf
• DejaVuSansCondensed-Bold.ttf
• DejaVuSansMono-BoldOblique.ttf
• DejaVuSans-Oblique.ttf

To use Helvetica-Neue, you must set value of "fontName" (signerImage.fontName) with this value:

/usr/share/fonts/helvetica-neue/@FONTNAME@

The possible values of "@FONTNAME@" are:

• HelveticaBlkIt.ttf
• HelveticaNeueBold.ttf
• HelveticaNeueCondensedBlack.ttf
• HelveticaNeueCondensedBold.ttf
• HelveticaNeueMedium.ttf
• HelveticaNeueUltraLightItal.ttf

Cades Preferences

With cades signature, it is possible to sign each type of file. The signCades method requires:

• Credentials assigned to device signature;
• Buffer, the file that you want to sign;
• CAdESPreferences, the preferences about CAdES signature.

In the following table, you can see how to set the CAdESPreferences correctly:

CAdESPreferences

Xades Preferences

With Xades Signature it is possible to sign only XML files, the signXades method requires:

• Credentials assigned to device signature
• Buffer, file that you want to sign
• XAdESPreferences, the preferences about XAdES signature

In the following table you can learn how to set the XAdESPreferences correctly:

Level

You can see how to set the correct Level signature:

How apply the timestamp

It is possible to apply timestamp with the method timestamp, in input require:

• content: byte array of the file to which the timestamp is applied;
• preferences: object containing details about timestamp.

Below the object timestamp:

Manage signer device

As already mentioned, SWS offers a method for managing the signing device.

Method changePassword

This method requires a different signature according to device type: automatic/eseal or remote. The output of this method will change the password. NOTE: if the holder device forgets the new password, it IS NOT POSSIBLE TO RESET the password.

changePassword on automatic/eseal signature

Input requires:

• credentials.username
• credentials.password
• credentials.securityCode
• newPassword

In output (if input is correct) will have the password associated to credentials.username set to "newPassword".

changePassword on remote signature

Input requires:

• credentials.username
• credentials.password
• credentials.idOtp
• credentials.otp
• newPassword

In output (if input is correct) will have the password associated to credentials.usernam set to "newPassword".

Method getCertificate

This method allow to obtain the certificate associated to signer device. This method require same input for automatic and remote signature. Below the details:

Method getAvailableSignatures

This method allow to obtain the number of signaures available This method require same input for automatic and remote signature. Below the details:

NOTE: this method can't be used for signer device "pay-per-use" (device with unlimited signatures), will generate error with code: "56"

Method getSignatures

This method allow to obtain the number of signaures apposed since the device has been created This method require same input for automatic and remote signature. Below the details:

Manage error in SWS

Each method can generate an exception, for example PIN not correct, sessioneKey expired or OTP not correct.

For example if we try to execute the signPAdESList method with the same OTP, we get the SOAP response with error 44, as in this response:

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
   <soap:Body>
      <soap:Fault>
         <faultcode>soap:Server</faultcode>
         <faultstring>Codice OTP errato, riprovare con il prossimo codice</faultstring>
         <detail>
            <ns2:WSException xmlns:ns2="http://service.ws.nam/">
               <error>44</error>
               <message>Codice OTP errato, riprovare con il prossimo codice</message>
            </ns2:WSException>
         </detail>
      </soap:Fault>
   </soap:Body>
</soap:Envelope>

By default, the error message is in the Italian language.

Error codes

Below is the table description of all error messages SWS can generate during your execution method:

Method getErrors

This method return a list of errors which can be generated from SWS in in

The type "ErrorDetails" is a composed by:

• int errorCode
• String errorLanguage (language code in 2 digit for example EN)
• String errorLanguage2 (language code in 3 digit for example ENG)
• String errorText (contain the error description in a specified language)

In this method, it is possible to return the list of all errors without setting the value of errorCode.

Verify the signatures/timestamp in SWS

SWS permits to verify the signature. For SWS the signature is VALID only if the signature has been apposed with qualified certificate.

For example the the certificate which has apposed the signature is qualified if:

• Root CA enroll the certificate is in the truested list
• private key is in secure device like smartcard, token or HSM

For example if the signature has been apposed with private key on file, the verify with SWS will fail because the private isn't in a secure device (like HSM).

Method for verification of digital signatures: verifyWithPreferences

This method allow to verify different types of signatures (detached or no): Pades, Xades, Cades:

Below will be described the complex object "VerifiyPreferences"

VerifyPreferences

In output will obtain the verification report described by complex object: SignedDocumentReportBean

SignedDocumentReportBean

Below will be described the complex object NoteReportBean, SignatureReportBean:

SignatureReportBean

Method for verification of timestamps

The timestamp can be of two different types:

• TSR (TimeStamp Response) + original file in the same file is called TSD (TimeStamp Data)
• TSR and original file in two different files

There are two method for verify the TSD and TSR:

• verifyTimeStampData
• verifyTimeStampResponse

Method verifyTimeStampResponse and verifyTimestampData

And the method "verifyTimestampData" permits to verify only TSD:

While the method "verifyTimeStampWithPreferences" permits to verify TSR and TSD, below the details:

Below will be described the complex object VerifyTimestampPreferences:

VerifyTimestampPreferences

TimestampReportBeanSummary

Below will be described the complex object TimestampReportBeanSummary:

Below will be described the complex object TimestampReportBean:

TimestampReportBean

NOTE: the timestamp file is verified only if for every element of TimestampReportBean list all this conditions (in AND) are verified:

• signatureVerificationStatus = VALID
• trustedListVerificationStatus = VALID
• timestampCertificateStatus = VALID

Method for verifyCertificate

Below the description of method "verifyCertificate":

CertificateReportBean

Below will be described the complex object CertificateReportBean:

LEGEND:

Below the details about certificate:

active → the certificate isn't revoked or hold

valid → isn't expired

Utilities for sign

Below will described described the method for extract the info about the files, for example extract extract the info about the fieldName in a PDF

getAvailableSignatureFieldNames

This method allow to retrieve for a given PDF file all signature fields present that there are NOT already used.

Below you can find a description of IN/OUT fields.

Example response

An example response can be found below:

[
 "SignatureField-1",
 "SignatureField-2"
]

allSignatureFieldNamesWithPreferences

This method allow to retrieve all signature field present inside a file. Using preferences the user is able to retrieve more details about the signature applied to a given signature field.

Below you can find a description of IN/OUT fields.

SignatureFieldPreferences

Here you can find a description of the complex object SignatureFieldPreferences

SignatureFieldPreferences

SignatureFieldName

Here you can find a description of the complex object SignatureFieldName:

SignatureDetails

Here you can find a description of the complex object SignatureDetails

PdfRectangle

Here you can find a description of the complex object PdfRectangle

Example response

Here you can find an example response:

[
    {
        "identifier": "SignatureField-1",
        "signed": false
    },
    {
        "identifier": "SignatureField-2",
        "signatureDetails": {
            "name": "My Name and Surname",
            "signDate": 1687869549000,
            "location": "Milan",
            "reason": "Signed for general purpose",
            "page": -1,
            "appearance": {
                "width": 40.50,
                "height": 10.20,
                "x": 1.0,
                "y": 2.3
            },
            "certificate": "<base64-encoded certificate>",
            "subjectDN": "CN=My Name and Surname, SERIALNUMBER=1234567890, GIVENNAME=MyName, SURNAME=My Surname, C=IT"
        },
        "signed": true
    }
]

getRemoteDeviceListFromPrivateAreaUser

Available from version 3.0.1

Example response:

ℹ️ Only REMOTE (RHI...) devices are shown by this method

[
  {
    "name": "RHI12345",
    "type": "REMOTE"
  }
  ...
]

This method allow to obtain remote devices belong to a private area username (MyNamirial account) Below the details of this method:

getRemoteDeviceListFromPrivateAreaUser

The "DeviceDTO" object is composed by:
